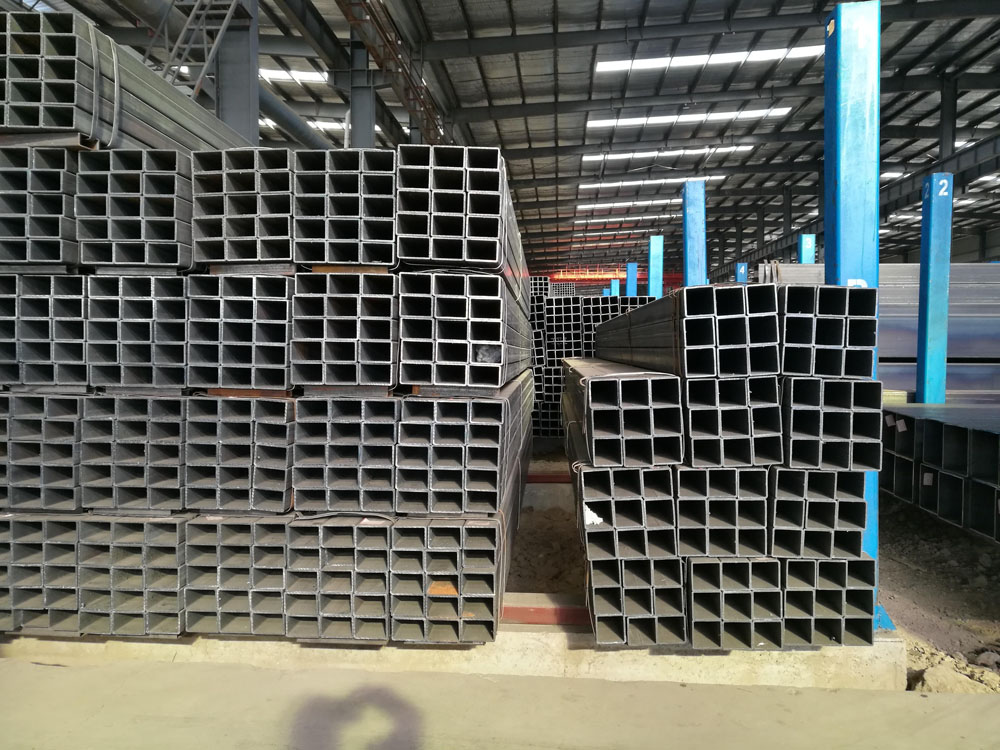

Rectangular and Square Tube

Short Description:

Standard:

ASTM A500 Grade B, ASTM A513 (1020-1026), ASTM A36 (A36)
EN 10210:S235,S355,S235JRH,S355J2H,S355NH
EN 10219:S235,S355,S235JRH,S275J0H, S275J2H, S355J0H, S355J2H

Types:

Stainless steel, galvanized steel, ms steel


Product Detail

Product Tags

Rectangular Tube Sizes:

SIZE mm WEIGHT kg/m EST. LBS. PER FT. SIZE mm WEIGHT kg/m
 EST. LBS. PER FT.
40 x 20 x 1.60 1.380 0.93 150 x 100 x 6.30 22.400 15.08
40 x 20 x 2.60 2.100 1.41 150 x 100 x 8.00 27.700 18.64
50 x 30 x 1.60 1.880 1.27 150 x 100 x 10.00 35.714 24.04
50 x 30 x 2.60 2.920 1.97 160 x 80 x 3.20 11.500 7.74
50 x 30 x 2.90 3.320 2.23 160 x 80 x 4.00 14.300 9.62
50 x 30 x 3.20 3.490 2.35 160 x 80 x 5.00 17.400 11.71
50 x 30 x 4.00 4.410 2.97 160 x 80 x 6.30 21.400 14.40
60 x 40 x 2.60 3.730 2.51 160 x 80 x 8.00 26.400 17.77
60 x 40 x 2.90 4.230 2.85 160 x 80 x 10.00 32.545 21.87
60 x 40 x 3.20 4.500 3.03 160 x 90 x 4.50 16.600 11.17
60 x 40 x 4.00 5.670 3.82 160 x 90 x 5.60 20.400 13.73
70 x 40 x 2.90 4.690 3.16 160 x 90 x 7.10 25.300 17.03
70 x 40 x 4.00 6.300 4.24 160 x 90 x 8.80 30.500 20.53
80 x 40 x 2.60 4.550 3.06 160 x 90 x 10.00 34.100 22.95
80 x 40 x 2.90 5.140 3.46 180 x 100 x 4.00 16.800 11.31
80 x 40 x 3.20 5.500 3.70 180 x 100 x 5.00 20.500 13.80
80 x 40 x 4.00 6.930 4.66 180 x 100 x 5.60 23.000 15.48
80 x 40 x 5.00 8.470 5.70 180 x 100 x 6.30 25.400 17.09
80 x 40 x 6.30 10.400 7.00 180 x 100 x 7.10 28.600 19.25
90 x 50 x 2.60 5.370 3.61 180 x 100 x 8.80 34.700 23.35
90 x 50 x 3.20 6.640 4.47 180 x 100 x 10.00 38.800 26.11
90 x 50 x 4.00 8.180 5.51 180 x 100 x 12.50 46.900 31.56
90 x 50 x 5.00 10.000 6.73 200 x 100 x 4.00 18.000 12.11
90 x 50 x 6.30 12.300 8.28 200 x 100 x 5.00 22.100 14.20
90 x 50 x 7.10 13.700 9.22 200 x 100 x 6.30 27.400 18.44
100 x 50 x 3.60 7.980 5.37 200 x 100 x 8.00 34.000 22.88
100 x 50 x 4.50 9.830 6.62 200 x 100 x 10.00 40.600 27.32
100 x 50 x 5.60 12.000 8.08 200 x 120 x 4.00 19.300 12.99
100 x 50 x 7.10 14.800 9.96 200 x 120 x 5.00 23.700 15.95
100 x 50 x 8.00 16.400 11.04 200 x 120 x 6.30 29.600 19.92
100 x 60 x 3.20 7.510 5.05 200 x 120 x 8.00 36.500 24.56
100 x 60 x 3.60 8.550 5.75 200 x 120 x 8.80 36.900 24.83
100 x 60 x 4.50 10.500 7.07 200 x 120 x 10.00 45.100 31.62
100 x 60 x 5.60 12.900 8.68 200 x 120 x 12.50 54.700 38.87
100 x 60 x 6.30 13.500 9.09 200 x 120 x 14.20 60.900 43.64
100 x 60 x 7.10 15.900 10.70 220 x 80 x 6.00 26.816 18.02
100 x 60 x 8.80 19.200 12.92 220 x 120 x 6.30 31.600 21.27
100 x 80 x 6.3 16.370 11.02 220 x 120 x 8.00 39.400 26.52
110 x 60 x 3.60 9.050 6.09 220 x 120 x 10.00 46.200 31.09
110 x 60 x 4.50 11.100 7.47 220 x 120 x 12.50 58.700 39.51
110 x 60 x 5.60 13.600 9.15 220 x 120 x 14.20 65.400 44.01
110 x 60 x 7.10 16.800 11.31 250 x 150 x 5.00 29.900 20.12
110 x 60 x 8.80 20.100 13.53 250 x 150 x 6.30 37.300 25.10
110 x 70 x 3.20 8.510 5.73 250 x 150 x 8.00 46.500 31.29
110 x 70 x 4.00 10.800 7.27 250 x 150 x 10.00 56.300 37.89
110 x 70 x 5.00 12.700 8.55 250 x 150 x 12.50 68.300 45.97
110 x 70 x 6.30 15.500 10.43 260 x 140 x 6.30 37.500 25.23
120 x 60 x 3.20 8.510 5.73 260 x 140 x 8.00 46.900 31.56
120 x 60 x 4.00 10.600 7.13 260 x 140 x 10.00 57.600 38.76
120 x 60 x 5.00 13.000 8.75 260 x 140 x 12.50 70.400 47.38
120 x 60 x 6.30 16.100 10.84 260 x 140 x 14.20 78.800 53.03
120 x 60 x 7.10 17.900 12.05 260 x 180 x 6.30 41.500 27.93
120 x 60 x 8.80 21.500 14.47 260 x 180 x 8.00 52.000 35.00
120 x 80 x 3.20 12.100 8.14 260 x 180 x 10.00 63.900 43.00
120 x 80 x 6.30 17.500 11.78 260 x 180 x 12.50 78.300 52.70
140 x 70 x 4.00 12.500 8.41 260 x 180 x  14.20 87.700 59.02
140 x 70 x 5.00 15.400 10.36 300 x 100 x 5.00 30.268 20.34
140 x 70 x 6.30 19.000 12.79 300 x 100 x 8.00 47.679 32.04
140 x 70 x 7.10 21.200 14.27 300 x 100 x 10.00 58.979 39.63
140 x 70 x 8.80 25.600 17.23 300 x 200 x 5.00 37.800 25.44
140 x 80 x 3.20 10.500 7.07 300 x 200 x 6.30 47.100 31.70
140 x 80 x 4.00 13.100 8.82 300 x 200 x 8.00 59.100 39.77
140 x 80 x 5.00 16.200 10.90 300 x 200 x 10.00 72.000 48.46
140 x 80 x 6.30 20.000 13.46 300 x 200 x 12.00 88.000 59.22
140 x 80 x 8.00 24.800 16.69
140 x 80 x 10.00 30.200 20.32
150 x 100 x 3.20 12.000 8.08
150 x 100 x 4.00 14.900 10.03

Square Tube Sizes:

Size by Inch  (diameter) Thickness Sizes by MM  (diameter) Thickness
inch inch mm mm
1/2" x 1/2" 0.065" 16mm×16mm 0.4mm1.5mm
3/4" x 3/4" 0.049" 18mm×18mm 0.4mm1.5mm
0.065" 20mm×20mm 0.4mm3mm
0.083" 22mm×22mm 0.4mm3mm
0.120" 25mm×25mm 0.6mm3mm
1" x 1" 0.049" 30mm×30mm 0.6mm4mm
0.058" 32mm×32mm 0.6mm4mm
0.065" 34mm×34mm 1mm2mm
0.072" 35mm×35mm 1mm4mm
0.083" 38mm×38mm 1mm4mm
0.095" 40mm×40mm 1mm4.5mm
0.109" 44mm×44mm 1mm4.5mm
0.120" 45mm×45mm 1mm5mm
1 1/8" x 1 1/8" 0.035" 50mm×50mm 1mm5mm
0.049" 52mm×52mm 1mm5mm
0.065" 60mm×60mm 1mm5mm
0.109" 70mm×70mm 2mm6mm
0.120" 75mm×75mm 2mm6mm
1 1/4" x 1 1/4" 0.049" 76mm×76mm 2mm6mm
0.065" 80mm×80mm 2mm8mm
0.072" 85mm×85mm 2mm8mm
0.083" 90mm×90mm 2mm8mm
0.109" 95mm×95mm 2mm8mm
0.120" 100mm×100mm 2mm8mm
0.135" 120mm×120mm 4mm8mm
0.156" 125mm×125mm 4mm8mm
0.188" 130mm×130mm 4mm8mm
1 1/2" x 1 1/2" 0.049" 140mm×140mm 6mm10mm
0.065" 150mm×150mm 6mm10mm
0.072" 160mm×160mm 6mm10mm
0.083" 180mm×180mm 6mm12mm
0.109" 200mm×200mm 6mm30mm
0.120" 220mm×220mm 6mm30mm
0.140" 250mm×250mm 6mm30mm
0.188" 270mm×270mm 6mm30mm
0.250" 280mm×280mm 6mm30mm
1 3/4" x 1 3/4" 0.065" 300mm×300mm 8mm30mm
0.083" 320mm×320mm 8mm30mm
0.095" 350mm×350mm 8mm30mm
0.109" 380mm×380mm 8mm30mm
0.120" 400mm×400mm 8mm30mm
0.188" 420mm×420mm 10mm30mm
2" x 2" 0.049" 450mm×450mm 10mm30mm
0.065" 480mm×480mm 10mm30mm
0.083" 500mm×500mm 10mm30mm
0.109" 550mm×550mm 10mm40mm
0.120" 600mm×600mm 10mm40mm
0.145" 700mm×700mm 10mm40mm
0.165" 800mm×800mm 10mm50mm
0.188" 900mm×900mm 10mm50mm
0.250" 1000mm×1000mm 10mm50mm
0.312"
2 1/4" x 2 1/4" 0.188"
0.250"
2 1/2" x 2 1/2" 0.083"
0.109"
0.120"
0.188"
0.250"
0.312"
3" x 3" 0.083"
0.120"
0.188"
0.250"
0.312"
0.375"
 3 1/2" x 3 1/2" 0.120"
0.188"
0.250"
0.312"
0.375"
4" x 4" 0.083"
0.120"
0.156"
0.188"
0.250"
0.312"
0.375"
0.500"
4 1/2" x 4 1/2" 0.188"
0.250"
0.312"
0.375"
5" x 5" 0.188"
0.250"
0.312"
0.375"
0.500"
6" x 6" 0.188"
0.250"
0.312"
0.375"
0.500"
0.625"
7" x 7" 0.188"
0.250"
0.312"
0.375"
0.500"
0.625"



8" x 8" 0.188"
0.250"
0.312"
0.375"
0.500"
0.625"
9" x 9" 0.188"
0.250"
0.312"
0.375"
0.500"
0.625"
10" x 10" 0.188"
0.250"
0.312"
0.375"
0.500"
0.625"
12" x 12" 0.250"
0.312"
0.375"
0.500"
0.625"
