Steel Angle
what is a Steel Angle?

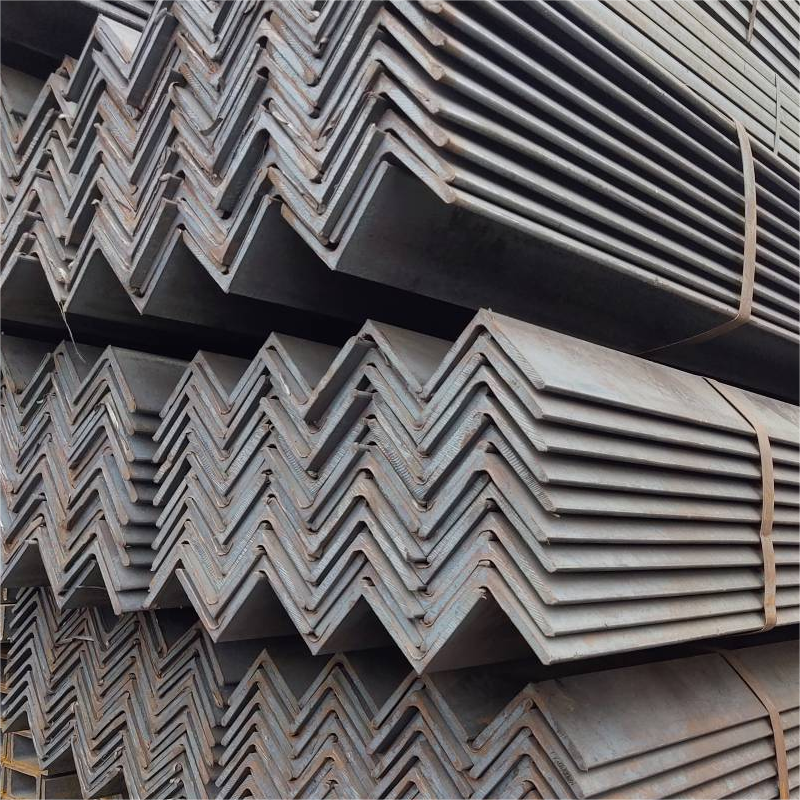

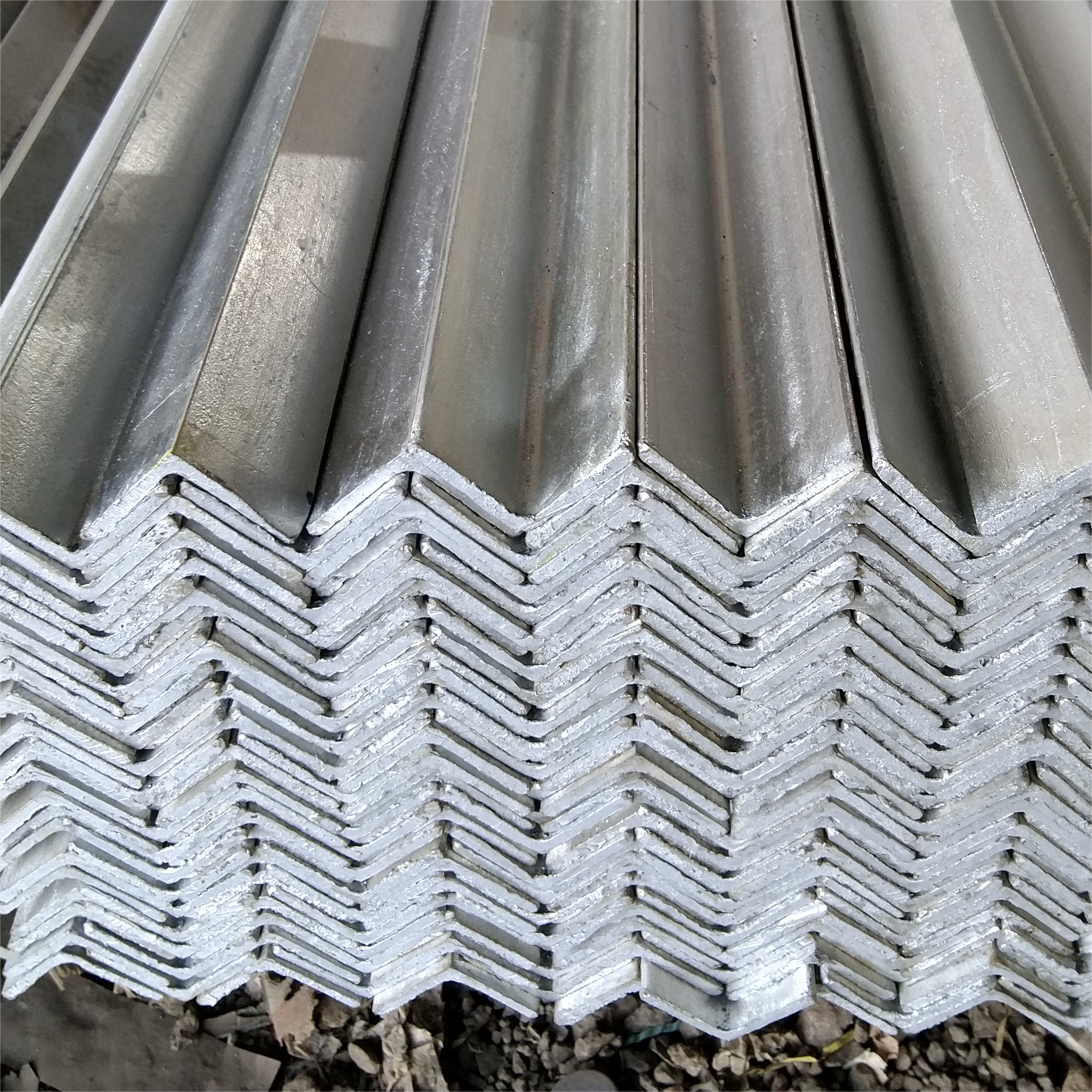

Steel angle, also named angle iron, or steel angle bar, is basically manufactured by hot-rolled carbon steel or high strength low alloy steel. It has L-cross shaped section with two legs - equal or unequal and the angle would be 90 degree. Structural steel angles have lots of dimensions to comply with your uses. In addition, bespoke sizes are available.
Steel Angle Mechanical Properties
| Equal Angle Steel Sizes | |||||||||
| Size (MM) |
Weight (KG/M) |
Size (MM) |
Weight (KG/M) |
Size (MM) |
Weight (KG/M) |
Size (MM) |
Weight (KG/M) |
Size (MM) |
Weight (KG/M) |
| 25*3 | 1.124 | 70*5 | 5.397 | 100*12 | 17.898 | 160*10 | 24.729 | 200*25 | 73.600 |
| 25*4 | 1.459 | 70*6 | 6.406 | 100*16 | 23.257 | 160*12 | 29.391 | 220*16 | 53.901 |
| 30*3 | 1.373 | 70*7 | 7.398 | 110*8 | 13.532 | 160*14 | 33.987 | 220*18 | 60.250 |
| 30*4 | 1.786 | 70*8 | 8.373 | 110*10 | 16.690 | 160*16 | 38.581 | 220*20 | 66.533 |
| 40*3 | 1.852 | 75*5 | 5.818 | 110*12 | 19.782 | 175*12 | 31.800 | 220*22 | 72.751 |
| 40*4 | 2.422 | 75*6 | 6.905 | 110*14 | 22.809 | 175*15 | 39.400 | 220*24 | 78.902 |
| 40*5 | 2.976 | 75*7 | 7.976 | 120*12 | 21.666 | 180*12 | 33.159 | 220*26 | 84.987 |
| 50*4 | 3.059 | 75*8 | 9.03 | 120*10 | 18.370 | 180*14 | 38.382 | 250*18 | 68.956 |
| 50*5 | 3.770 | 75*10 | 11.089 | 120*12 | 21.666 | 180*16 | 43.542 | 250*20 | 76.180 |
| 50*6 | 4.465 | 80*6 | 7.376 | 125*8 | 15.504 | 180*18 | 48.634 | 250*24 | 90.433 |
| 60*5 | 4.520 | 80*10 | 11.874 | 125*10 | 19.133 | 200*14 | 42.894 | 250*25 | 93.770 |
| 60*6 | 5.420 | 90*8 | 10.946 | 125*12 | 22.696 | 200*15 | 45.300 | 250*26 | 97.461 |
| 63*4 | 3.907 | 90*10 | 13.476 | 125*14 | 26.193 | 200*16 | 48.680 | 250*28 | 104.422 |
| 63*5 | 4.822 | 90*12 | 15.940 | 140*10 | 21.488 | 200*18 | 54.401 | 250*30 | 111.318 |
| 63*6 | 5.721 | 100*8 | 12.276 | 140*12 | 25.522 | 200*20 | 60.056 | 250*32 | 118.149 |
| 63*8 | 7.469 | 100*10 | 15.120 | 140*14 | 29.490 | 200*24 | 71.168 | 250*35 | 128.27 |
| Unequal Angle Steel Sizes | |||||
| Size (MM) |
Theoretical weight (KG/M) |
SIZE (MM) |
Theoretical weight (KG/M) |
SIZE (MM) |
Theoretical weight (KG/M) |
| 125*75*7 | 10.700 | 100*80*10 | 13.476 | 180*110*16 | 34.649 |
| 125*75*8 | 12.200 | 110*70*6 | 8.350 | 200*125*12 | 29.761 |
| 125*75*9 | 13.600 | 110*70*7 | 9.656 | 200*125*14 | 34.436 |
| 125*75*10 | 15.000 | 110*70*8 | 10.946 | 200*125*16 | 39.045 |
| 125*75*12 | 17.800 | 110*70*10 | 13.476 | 200*125*18 | 43.588 |
| 45*30*4 | 2.251 | 125*80*7 | 11.066 | 200*125*20 | 47.885 |
| 50*32*4 | 2.494 | 125*80*8 | 12.551 | 100*75*6 | 8.060 |
| 56*36*4 | 2.818 | 125*80*10 | 15.474 | 100*75*7 | 9.340 |
| 63*40*5 | 3.466 | 125*80*12 | 18.330 | 100*75*8 | 10.600 |
| 63*40*6 | 3.920 | 140*90*8 | 14.160 | 100*75*9 | 11.800 |
| 75*50*5 | 4.638 | 140*90*10 | 17.475 | 100*75*10 | 13.000 |
| 75*50*6 | 4.808 | 140*90*12 | 20.724 | 100*75*12 | 15.350 |
| 75*50*8 | 5.699 | 140*90*14 | 23.908 | 150*90*8 | 14.700 |
| 90*56*6 | 7.431 | 160*100*10 | 19.872 | 150*90*9 | 16.400 |
| 90*56*8 | 6.717 | 160*100*12 | 23.592 | 150*90*10 | 18.200 |
| 100*63*6 | 8.779 | 160*100*14 | 27.035 | 150*90*12 | 21.600 |
| 100*63*8 | 7.550 | 160*100*16 | 30.835 | 200*100*10 | 23.000 |
| 100*63*10 | 9.878 | 180*110*10 | 22.273 | 200*100*12 | 27.620 |
| 100*80*6 | 12.142 | 180*110*12 | 26.464 | 200*100*15 | 30.040 |
| 100*80*8 | 10.946 | 180*110*14 | 30.589 | ||
Steel Grade
| Standard Equivalent | ||||||||
| China GB/T,YB |
America ASTM |
Japan JIS |
Germany DIN EN |
England BS EN |
France NF EN |
ISO | Korea KS |
India IS |
| Q195 | Grade B | SS330 SPHC |
S185(1.0035) | E185 Fe(310) |
D | |||
| Q215 | Grade C CS Type B |
SS330 (SS34) |
Fe-330 | |||||
| Q235-A | Grade D | SS400 | S235JR (1.0038) | E235 A E235 B E235 C E235 D |
SS400 (SS41) |
|||
| Q235-B | S235J0(1.0114) | Fe-410 | ||||||
| Q235-C | S235J2(1.0117) | |||||||
| Q235-D | S235JR(1.0038) | |||||||
| Q275 | SS Grade 40 (275 ) |
SS490 | S275JR(1.0044) S275J0(1.0143) S275J2(1.0145) |
E275 (Fe430) |
SS490 | Fe-490 | ||
| Q345-A | Grade 50 (345) |
SPFC590 | E355(1.0060) | E355 | ||||
| Q345-B | S355JR(1.0045) | |||||||
| Q345-C | S355J0(1.0553) | |||||||
| Q345-D | S355J2(1.0577) | |||||||
| Q345-E | S355NL(1.0546) | |||||||
Stainless Steel Angle Applications
Stainless angle and 304 stainless steel angle products are used for numerous applications throughout a multitude of industries, some of which include:
Aerospace
Architectural
Construction
Chemical
Food Processing
Oil & Gas
And more
We are a professional Steel Angle manufacturer. We provide Carbon Steel Angle of different sizes as well as steel pipes and pipe fittings of various specifications.
Our Advantages:
1.China-leading product service provider and exporter of steel pipe
2.Competitive price and quality from our own factory
3.One-stop Resource Integration
4.Passed the ISO9001, CE, SGS certification every year
5.Best service with 24-hour response
6.Flexible payment methods
7.Strong production capacity
8.Fast delivery and standard export packaging
9.OEM/ODM
If you would like to inquire about any steel products, please feel free to contact us:sales@bestartubes.com
